AirMDR Remote Agent – Architecture & Operational

​

Purpose

The AirMDR Remote Agent (RA) is a lightweight, secure client that runs inside a customer’s private environment and enables AirMDR to collect logs and execute controlled data requests without requiring inbound network access. It is designed for environments where:

• Inbound connectivity is restricted
• VPNs are not permitted
• Direct cloud-to-SIEM access is disallowed

The agent acts as a secure bridge between AirMDR Cloud and customer-controlled resources such as SIEMs, Windows hosts, and private infrastructure.

​

Deployment Model

• Installed on:
  • A Jump Box, or
  • A Windows/Linux endpoint inside the customer network
• Operates entirely via outbound-only connections
• Requires no inbound firewall rules
• Uses TLS-encrypted WebSocket (WSS) over port 443
  This design aligns with common enterprise security policies that prohibit inbound connections to internal systems.

​

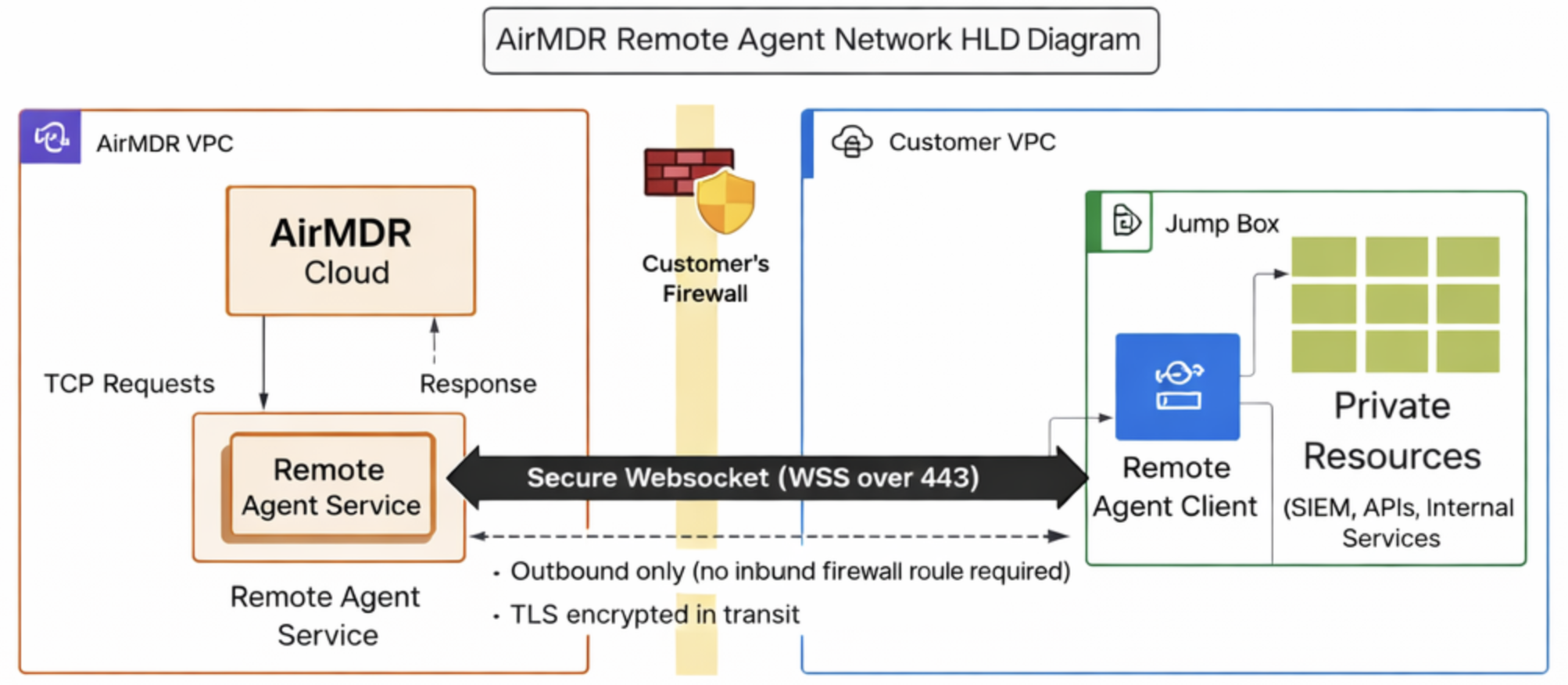

High-Level Architecture

​

Architecture at a Glance

​

Core Components

​

1. Remote Agent Client (Customer Environment)

• Written in Go
• Runs as a background service
• Establishes and maintains a persistent WSS connection to AirMDR Cloud
• Persists configuration locally (config.json)
• Responsible for:
  • Buffering
  • Retry logic
  • Checkpointing
  • Auto-reconnect
  • Heartbeats
  • Auto-upgrade (optional)

​

2. AirMDR Remote Agent Service (Cloud)

• Acts as a WSS gateway
• Authenticates agent connections
• Sends control commands to agents
• Tracks agent health and connectivity
• Forwards received data into AirMDR’s ingestion pipeline

​

3. Log Ingestion Pipeline (Cloud)

• Normalizes incoming data
• Stores logs in scalable storage
• Forwards data to AirMDR’s detection and investigation engine

This separation ensures no customer credentials or private endpoints are exposed directly to the cloud

​

Communication & Transport Security

• Protocol: Secure WebSocket (WSS)
• Port: 443 (standard HTTPS)
• Encryption: TLS in transit
• Direction: Agent → Cloud only

​

Why WebSockets?

• Maintains a persistent connection through NATs and firewalls
• Allows near-real-time command and data exchange
• Avoids polling overhead

No inbound connections are ever initiated into the customer environment.

​

Data Collection Modes

The AirMDR Remote Agent supports two ingestion models, selectable per integration.

​

1. PULL-Based Collection (SIEM & APIs)

Used for:

• Splunk
• QRadar
• Elastic / OpenSearch
• Other TCP/HTTPS-based APIs

Flow:

1. AirMDR sends a TCP_REQUEST command to the agent
2. Agent executes the request locally against the SIEM/API
3. Results are:
   • Batched
   • Normalized
   • Returned via WSS
4. Checkpoints ensure no duplicate data

This approach respects SIEM API rate limits and avoids exposing SIEM endpoints externally

​

2. PUSH-Based Collection (Windows Logs)

Used for:

• Windows Event Logs
• Sysmon
• PowerShell Operational logs

Flow:

1. Agent subscribes locally using:
   • Windows Event Log API
   • ETW (Event Tracing for Windows)
2. Events are normalized to JSON
3. Logs are batched and sent upstream as SYSLOG_BATCH

This allows log collection even in environments without centralized Windows Event Forwarding

​

Internal Agent Architecture

Inside the agent, responsibilities are clearly separated:

​

Transport Layer

• WSS connect + reconnect
• Read/write loops
• Request/response correlation via request_id
• Message dispatching

​

Command Handler

• Handles control messages such as:
  • CONFIG_*
  • TCP_REQUEST
  • RESTART_COLLECTOR
  • RESTART_AGENT
  • PING

​

Collector Manager

• SIEM Collector: Executes remote API pulls
• Windows Collector: Subscribes to local event streams

​

Local Buffer (Spooler)

• Durable queue (embedded DB)
• Stores data when offline
• Automatically drains on reconnect

​

Heartbeat Manager

• Sends periodic PING
• Tracks connection health
• Collects basic system metrics

​

Auto-Update Module (Optional)

• Downloads signed updates
• Verifies integrity
• Performs atomic binary swaps

This modular design ensures resilience and fault isolation

​

Heartbeats & Health Monitoring

​

Heartbeat Purpose

• Detect dropped connections
• Prevent idle timeouts
• Measure agent health

​

Mechanism

• Agent sends PING every ~30 seconds
• Cloud responds with PONG
• Failure handling:
  • Reconnect if no PONG within 10 seconds
  • Agent marked offline after two missed heartbeats

Heartbeats continue even if collectors fail, allowing clear separation of connectivity vs ingestion health

​

Reliability & Failure Handling

The Remote Agent is designed for unreliable networks:

• Automatic reconnect
• Disk-based buffering when offline
• Retry with backoff
• Checkpointing to avoid data loss or duplication

Temporary outages do not require manual intervention.

​

Security Characteristics (Summary)

• Outbound-only traffic
• TLS-encrypted transport
• No inbound firewall rules
• No VPN required
• Credentials never leave customer environment
• Minimal local persistence
• Optional signature-verified auto-updates

These properties align with strict enterprise security and compliance requirements

​

Operational Visibility

• Agent reports:
  • Online/offline status
  • Heartbeat health
  • Collector state
• Optional local metrics endpoint (e.g., Prometheus)
• Logs available via systemd / Windows service logs

​

When Should a Security Engineer Use the Remote Agent?

Use the AirMDR Remote Agent when:

• SIEM or logs are not internet-exposed
• Inbound access is prohibited
• API access must originate from inside the network
• Security policy forbids VPNs or tunnels
• Windows logs must be collected locally

​

Summary

The AirMDR Remote Agent provides a secure, resilient, and policy-aligned mechanism to extend AirMDR’s detection and investigation capabilities into private environments—without weakening perimeter security.

​

Support

For additional assistance:

• Contact AirMDR Support through your designated support channel.
